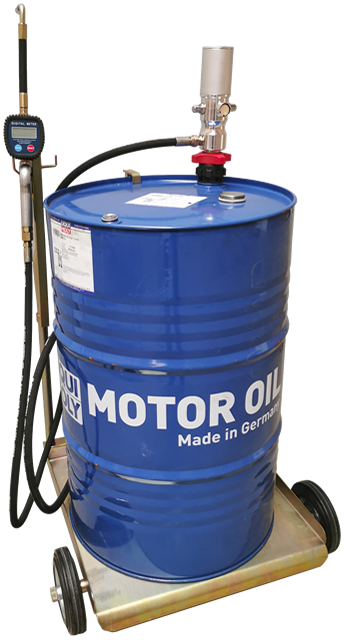

The ideal combination for dispensing oil in any workplace.
The compact trolley has two fixed wheels and two castors that make it very easy to maneuverer.
It is equipped with a pump support and a drum clamping mechanism designed for a 210 Liter drum.
The pneumatic pump is able to dispense 14 Liters per minute and the digital oil gun displays both short and long term measurements.
The short term display can be easily reset before the gun is needed for the next vehicle, however the total amount cannot be reset which helps with stock control.
Code: K99235
Product: Trolley – mounted oil dispenser with digital oil gun
Data Sheet: Download product specs ![]()
*Colours and designs may differ
1 year warranty
Important notice!
• Use of water trap required
Features and Benefits
| Features: | Benefits: |
| Digital Oil Gun | The digital oil gun is equipped with a digital display that provides precise measurements of the dispensed oil, ensuring accuracy during oil filling and reducing the risk of overfilling or underfilling. |
| Trolley Mounting | The dispenser is mounted on a trolley or cart with wheels, making it highly portable and allowing technicians to easily move it to different vehicles or workstations as needed. |
| Adjustable Nozzle | The oil gun typically features an adjustable nozzle that can be customized to fit various oil fill points on different vehicles or equipment. |
| Flow Control | Many digital oil guns have flow control features that allow technicians to adjust the rate at which oil is dispensed, providing flexibility for different oiling applications. |
| Digital Keypad | Some models come with a digital keypad for setting oil quantity and other parameters, providing precise control over the dispensing process |
| Drip Tray | A built-in or attachable drip tray captures any oil drips or spills, keeping the work area clean and preventing oil contamination. |
| Hose and Swivel | A flexible hose and swivel attachment allow for easy maneuverability and access to hard-to-reach oil fill points. |
| Oil Preset Function | Some digital oil guns have a preset function that allows technicians to set a predetermined oil quantity, simplifying repetitive oil dispensing tasks. |
| Automatic Shut-Off | An automatic shut-off feature stops the oil flow once the preset quantity is reached, preventing overfilling and reducing waste. |
| Accuracy: The digital oil gun’s digital display ensures precise oil dispensing, reducing the risk of overfilling or under filling, which can lead to engine damage or inefficiency. Efficiency: Cleanliness: Versatility: Reduced Waste: Precision Control: Customer Satisfaction: Time Savings: Environmental Responsibility: Long-Term Investment: |
|
| Training available | Technicians can be professionally trained to use the machine and get the maximum benefit from it. |
| 1 year warranty | The machine will be repaired if there are any factory faults and can be replaced if required. |
Technical information digital oil meter gun
Operating Pressure (maximum): 1500 psi/100 Bar
Working temperature: -10°C – +50C
Accuracy (non- approved version): ± 0.5%
Accuracy (approved version): ± 0.3%
Applied viscosity of fluid: 8-5000mPas
5- digit LCD display: Liters
Inlet and outlet connections: ½” BSP
Technical information oil pump
Compression ratio: 5:1
Operating pressure: 5-8 Bar
Air consumption: 240 Liter per minute
Capacity: 14 Liters per minute
Max oil viscosity: 130SAE
Operating temperature: 10°-50°C
Noise level: 82dB
Packaging dimensions 1/3: 660*810*100 mm
Packaging weight 1/3: 23 kg
Packaging dimensions 2/3: 1290*130*130 mm
Packaging weight 2/3: 7 kg
Packaging dimensions 3/3: 630*140*140 mm
Packaging weight 3/3: 2.5kg
