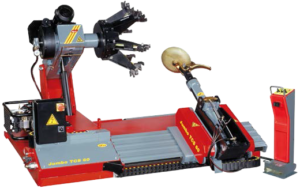

Model: Jumbo TCS 60
Product: Agricultural plus off the road and truck tyre changer
Data Sheet: Download product specs
*Colours and designs may differ
Product: Agricultural plus off the road and truck tyre changer
Data Sheet: Download product specs
*Colours and designs may differ
Description:
The JUMBO TCS 60 with an even wider application range. It can change tyres of up to 2.9 meters height and up to 2.8 tonnes; It can also be applied to light trucks, heavy duty trucks, agricultural vehicles, skidder and trailers, wheels. The working tools are controlled by a hydraulic system and the 6 jaws chuck (patented) is driven by an electric motor. Available in the wired or radio controlled variants.
| Features: | Benefits: |
| Over 4 tonnes of bead breaker force | Optimization of working time and energy saving. |
| Accurate and safe 6 jaws clamping system (patented) | Work can be centered to high precision, and secure grip. |
| Adjustable hydraulic pressure for light wheels | Easier to break the bead on the tyres. |
| Clamping capacity up to 60” with extension (accessories) | Can accommodate larger OTR tyres |
| Adjustable hydraulic pressure for light wheels | Less manual labor |
| Chuck with bi-directional rotation function | Can rotate clockwise and anti-clockwise for ease of mounting and demounting of tyres. |
| Double speed rotation chuck | Allows safe operation with various wheel sizes. |
| High performing pivoting tool with bead breaker disc and mounting/demounting hook | Less manual labor, no external tools required for mounting and demounting of tyres. Less strain on the operators back. The machines use a fixed pivoting swing arm of which the fitting head is positioned respectively using a threaded stop. You just unscrew it to accommodate smaller wheels or screw it in further for the larger wheels. The height of the fitting head is locked into position manually using a hand operated locking handle. |
| Quick tool set-up fully controlled through the remote unit with tangency positioning (patented) |
Keeping the operator clear of any dangers that might occur, and also better viewing point to operate the machine. |
| Training available | Technicians can be professionally trained to use the machine and get the maximum benefit from it. |
| 2 year warranty | The machine will be repaired if there are any factory faults and can be replaced if required. |
| Spares available | Should you have a breakdown you will not have to wait for your machine to be repaired. If there is anything we don’t have, we fly it in directly from the Suppliers. |
| Operational videos | Technicians can learn how to operate the machine by watching a video, which is easier and more simple than written instructions. |
Technical information
Rim size: 14” – 60” inch
Min clamping diameter: 115 mm
Max Tyre diameter: 2900 mm
Max tyre width: 1490 mm
Max bead breaker force: 4.1 ton
Power supply: 400V
Dimensions (W*H*L): 2800*2080*2700 mm
Weight: 1750 kg
