Model: CB78S

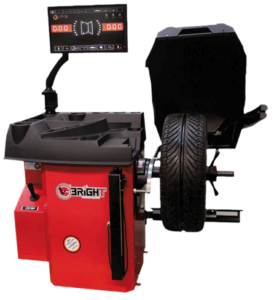

Product: Automatic passenger 3D Wheel balancer with touch display and sonar
Data sheet: Download product specs
*Colours and designs may differ
*Designed & Engineered in Italy Assembled in PRC
Description
The CB78S wheel balancer is equipped with a wide touch LCD display and
Italian software with simple controls. To rotate the wheel, a stepper motor with a precision
approach to the non-weft positions is used. The mechanical group of the shaft and the
drive motor is arranged in one cushioned unit, thus achieving high precision balancing and
minimal maintenance requirements. Self-calibration and fully automatic diagnostics can be
performed easily.
| Features: | Benefits: |
| Stopping in a non-weft position by a stepper motor | Stopping at exact point were weight needs to be placed |
| Laser | Guided placement of the weight. |
| Touch LCD display | Improve efficiency |
| Fully automatic measurement of all wheel balancer dimensions | Improve efficiency |
| LED lighting space application of weights | If working in a dark area the operator can clearly see the wheel to place the weights. |
| Intelligent self- calibration | The machine does not require to be manually calibrated. |
| Quiet operation, low balancing speed | Energy efficient |
| Automatic switch to power save mode | Energy efficient |
| Sonar | For the automatic acquisition of the rim width, faster and more practical |
| Designed and Engineered in Europe | Italian software. |
| User friendly | Easy to operate and balance wheels. |
| Comes with 5 ALU balancing and 2 ALU smart balancing programs. | Complete range of different wheels. |
| 40mm diameter shaft | Stability, high precision bearing driven, wear resistant and produces low noise. |
| History of Balancing and Calibration Data | Keep record of balancing/calibration done. |
| Safety hood | To prevent the tyre from flying in any direction and protect the operators eyes & face from any debris that might come flying off the tyre. |
| Uses a new accelerometer to measure 3 values | To improve accuracy. |
| Allows operator to be able to set up and install an operation procedure that he frequently uses. | Time saving. |
| Rugged welded steel body construction. | Designed to perform and built to last. |
| Training available | Technicians can be professionally trained to use the machine and get the maximum benefit from it. |
| 1 year warranty | The machine will be repaired if there are any factory faults and can be replaced if required. |
| Spares available | Should you have a breakdown you will not have to wait for your machine to be repaired.If there is anything we don’t have, we fly it in directly from the Suppliers. |
| Operational videos | Technicians can learn how to operate the machine by watching a video, which is easier and more simple than written instructions. |
Technical Information
Rim diameter: 10” – 28” inch
Max wheel weight: 70 kg
Max wheel width: 1188 mm
Rim width: 1.5” – 20” inch
Precision: ±1 g
Motor power: 370 W
Power supply: 100/230V 1 ph
Rotation per minute: 140 rpm
Balancing time: 7 s
Second time mounting test: <5 g
Packaging dimensions: 1150*880*1150 mm
Net weight: 154 kg
Gross weight: 192 kg
