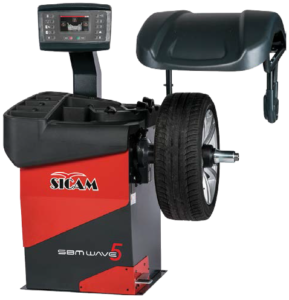

Model: SBM WAVE 5 LCD AWLP
Product: Electronic wheel balancer (pneumatic lock)
Data sheet: Download product specs
*Colours and designs may differ
Description:
Electronic wheel balancer for passenger car with LCD Display, pneumatic locking system, internal and sonar width measuring, with light ring and laser pointers.
| Features: | Benefits: |
| New graphic user interface | • New Digital display with high quality • LCD technology, enhancing sharpness and brightness for a unique digital experience • 22“ Touch screen monitor with HQ graphic • Just One touch selection • Re-engineered and intuitive GUI |
| Multi-functional pedal | • Multi-functional: Electromechanical brake, • Clamping, Unclamping • Ergonomic design |
| New design | • More space available for tools and weights • Everything at hand in an ergonomic design • New, solid and no-slip weight tray |
| Quick selection program(QSP) | • Fast and Automatic recognition of TOP3 Programs: Standard, Alu 2, Alu 3 |
| 2 internal laser pointers | • One fixed laser 12 o’ clock positioning for steel rims • One auto-positioning laser for internal weight applications |
| Self diagnostic | • Automatic check-up for easy troubleshooting • Ready for remote access |
| Automatic tyre positioning | • Time saving for weight application • Driven-auto positioning in the unbalancing position for internal and external weight application |
| Print out | Detailed balancing procedure report |
| Pneumatic locking system | Locking the cone pneumatically – less manual labor. |
| Internal arm | Automatic measuring of the distance and diameter of the rim/wheel |
| Sonar | For the automatic acquisition of the rim width, faster and more practical |
| Light ring | If working in a dark area the operator can clearly see the wheel to place the weights. |
| Laser pointer | Guided placement of the weight. |
| Training available | Technicians can be professionally trained to use the machine and get the maximum benefit from it. |
| 2 year warranty | The machine will be repaired if there are any factory faults and can be replaced if required. |
| Spares available | Should you have a breakdown you will not have to wait for your machine to be repaired. If there is anything we don’t have, we fly it in directly from the Suppliers. |
| Operational videos | Technicians can learn how to operate the machine by watching a video, which is easier and more simple than written instructions. |
Technical information
Power supply: 230 V 1 ph 50/60 Hz
Balancing speed: (50 – 60 Hz) 220 rpm ± 2%
Max wheel weight: 80 Kg
Max wheel diameter: 1150 mm
Max wheel width: 508 mm
Rim diameter: 13?-30? / 12?-40? inch
Rim width: 3?-15? / 3?-20? inch
Accuracy: 5% ± 1g/1g
Measuring time: 5s
